Trial Time Setting Function Solar Water Pump Controller With 99% Efficient MPPT
1. The advantages of solar pump inverters
1) Operates without grid directly from photovoltaic (PV) cells to save more energy and provide enough power
for your solar water system
2) Automatic start and stop with solar radiation to make sure that the solar pump inverter can work in high efficiency
when the solar power is enough for the machine
3) Built-in maximum power point tracking(MPPT), more than 99% MPPT to provide you stable flow power
4) Easy installation and set-up for serial production, more compact product size for better installation and save more
space for delivering
5) Compatible with all pump types, which can be applied in many industries for different motors
2. VFD500-PV control circuit terminal instruction
| Type | Terminal symbol | Terminal name | Terminal function description |
| Analog output | AO1 | Analog output 1 | Output voltage:0~10V:Impedance ≥10KΩ |
| Output current:0~20mA:Impedance 200Ω~500Ω |
| Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output |
| AO2 | Analog output 2 | Output voltage:0~10V:Impedance ≥10KΩ |
| Output current:0~20mA:Impedance 200Ω~500Ω |
| Through the jumper switch AO2 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output |
| GND | Analog ground | Internal isolation from COM |

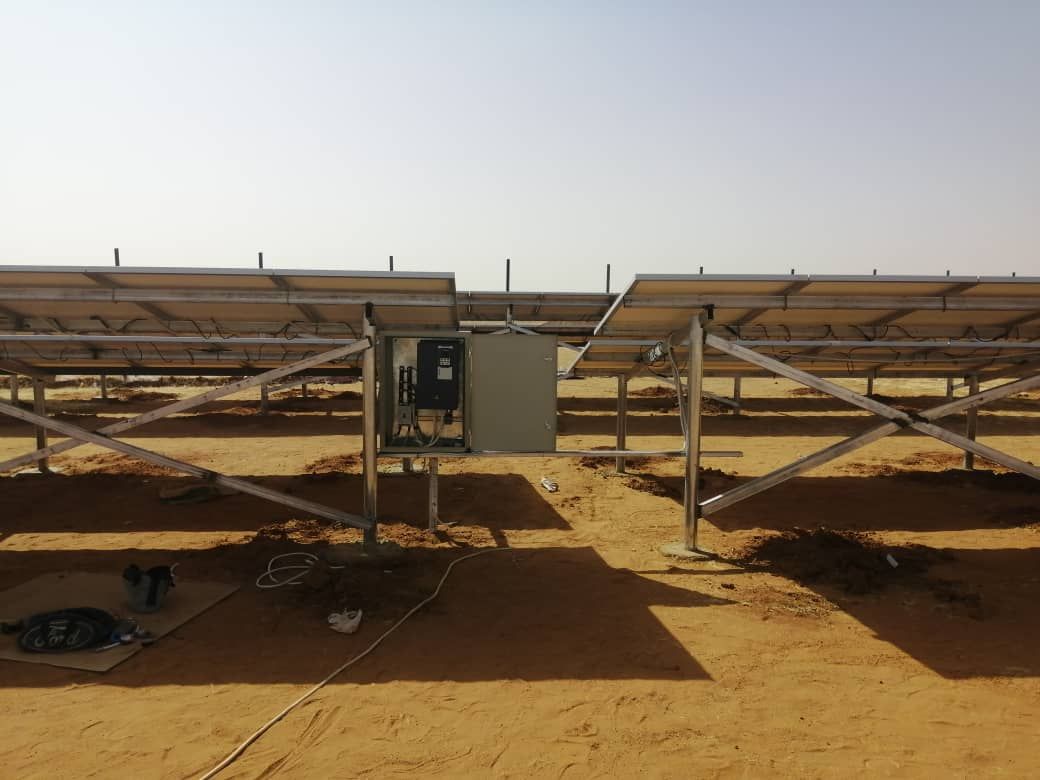

3. VEIKONG solar pump inverter product application pictures
4. VFD500-PV series product brochure and user manual download here
VEIKONG VFD500-PV Hybrid Solar pumping inverter us...
VEIKONG solar pump inverter brochure.pdf
5. Veikong high standard and reliable after sale service
We will provide you 18 months warranty. If everything is broken down during this process, we will be responsible for that.
Your request for repairs on the spot has a quick response. You get the latest expertise carried out by Veikong service engineers. If it is not possible to fix the issue on-site, we will offer you a perfect in-depth investigation of your application to determine the root cause of the incident and avoid any potential re-occurrence.
